Drag Cable Chain

Product Introduction: drag cable chain

A wire and cable protection drag chain, commonly known as a drag cable chain or cable carrier, is a useful device that securely fastens cables, wires, air pressure pipes, and oil pressure pipes, enabling their smooth rotation and movement. There are two main types of drag chains available, namely steel drag chains and plastic drag chains. Steel towlines are typically made up of a combination of steel and aluminum and can be customized to meet specific requirements. On the other hand, plastic towlines, often referred to as engineering plastic towlines or tank chains, are also widely used. Depending on the specific application and environment, towlines can be categorized into three types: bridge towlines, fully enclosed towlines, and semi-enclosed towlines.

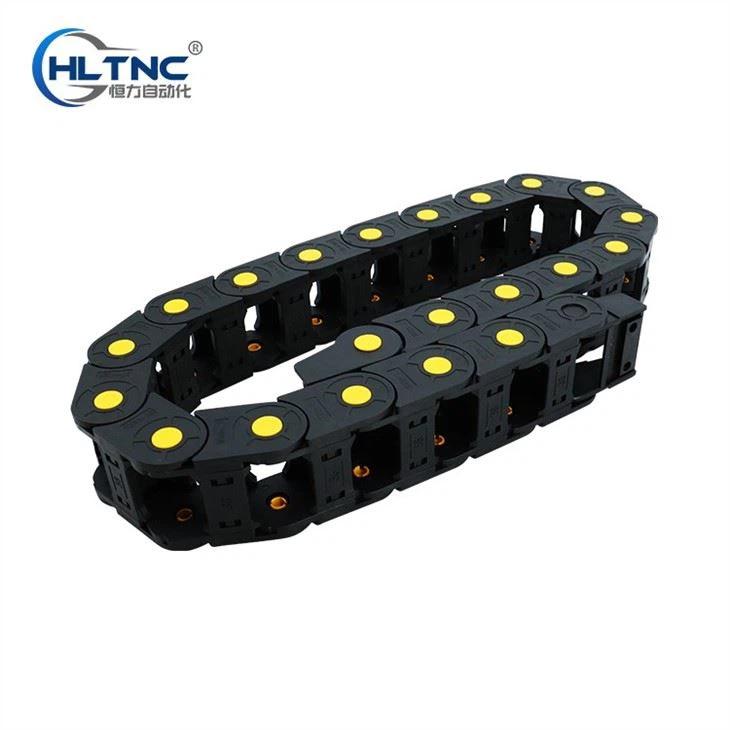

The structure of plastic drag chain

The towline consists of numerous unit links that are able to rotate independently within the chain, resembling the design of a tank.

The towline chains in the same series have uniform inner height, outer height, and pitch, but different options for inner width and bending radius R. This implies that one can select the towline chains with varying inner width and bending radius while maintaining the uniformity of other parameters. By doing so, the user can optimize the towline chain for their specific application and ensure efficient operation. It is important to note that the towline chains with alternate specifications must be selected carefully to ensure compatibility with the machinery and equipment they will be used with.

The chain link unit is composed of both left and right chain plates, as well as upper and lower cover plates. It is designed to be easily assembled and disassembled without the need for threading. When the cover is opened, it allows for convenient placement of various items such as cables, oil pipes, air pipes, and water pipes into the towline.

Easy installation and maintenance are facilitated in each section of the energy chain, as they are designed to be opened. Moreover, this design ensures low noise and wear resistance while in motion, enabling it to move at high speed.

Separators can be used to divide the space within the chain as required. It is possible to create sections in the chain by utilizing separators.

Product Features

The material used is reinforced nylon, which exhibits remarkable characteristics such as high pressure and tensile load. Its good toughness and high elasticity make it durable, capable of withstanding wear and tear. Additionally, it is flame retardant and can maintain consistent performance even in extreme temperatures. Moreover, this material is suitable for outdoor use due to its exceptional stability.

Oil resistance, salt resistance, and resistance to a specific acid and alkali are some of the notable properties that can be found in certain materials. These materials exhibit a remarkable ability to withstand the damaging effects of these substances. Whether it's protecting against the corrosive nature of oil, withstanding the detrimental impact of saltwater, or resisting the harsh conditions imposed by acids and alkalis, these materials prove their resilience.
One of the most striking aspects of these materials is their ability to resist the deleterious effects of oil. As oil can be highly corrosive, causing damage to many surfaces it comes into contact with, having a material that is resistant to its destructive nature is of utmost importance. Such materials can effectively prevent oil from seeping through or eroding their structure, ensuring their longevity and optimal performance.
Similarly, salt resistance is another valuable characteristic possessed by certain materials. The corrosive nature of saltwater can cause severe damage to various objects, ranging from metal structures to electronic components. However, materials that demonstrate salt resistance can withstand the challenging conditions encountered in saltwater environments, providing long-lasting protection against corrosion and degradation.
Moreover, acid and alkali resistance is a crucial property for materials exposed to these harsh substances. Acids and alkalis can be incredibly corrosive and can quickly degrade or destroy unprotected materials. However, materials that possess acid and alkali resistance exhibit outstanding durability in the face of such chemicals. This resistance allows the materials to maintain their integrity and functionality in environments where acid or alkaline substances are present.
In conclusion, the resistance to oil, salt, acid, and alkali offers tremendous benefits for a wide range of applications. Materials with these remarkable properties can withstand and overcome the damaging effects of these substances, ensuring their longevity, functionality, and reliability in a variety of environments and conditions.

The performance of the Jiabora energy chain is dependent on the operating conditions, particularly the speed and acceleration. This energy chain is designed to be lightweight and operate smoothly, which enables it to achieve high speeds over long distances. Additionally, it has the capability of accelerating quickly and making emergency stops when necessary. Overall, the Jiabora energy chain is optimized to deliver reliable and efficient performance in a variety of operating conditions.

Product Specification

Product Application

The application of this product is ideal for reciprocating motion scenarios. It effectively safeguards and preserves the internal cables, oil pipes, air pipes, water pipes, etc.

The towline is designed with segmented sections that can be easily opened for convenient installation and maintenance. The system operates at high-speed, with low noise and abrasion-resistant materials used for prolonged use.

Towline is extensively utilized across various industries, including CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, manipulators, lifting and transportation equipment, and automated warehouses. Its wide range of applications makes it an essential component in these sectors.
